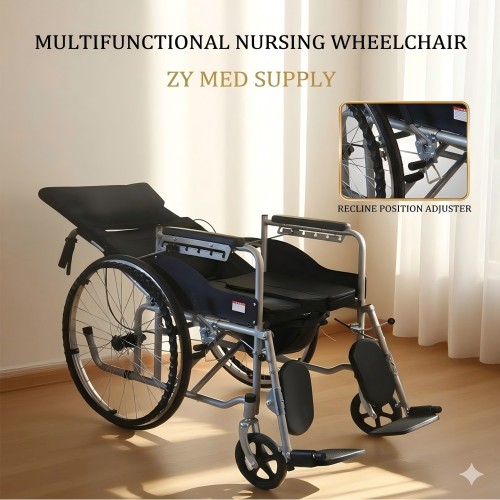

Superior Stability & Hygiene: ZY-W02 Reinforced Reclining Wheelchair

The ZY-W02 is a premium medical-grade manual wheelchair engineered to deliver exceptional structural integrity and all-day user comfort.

Constructed with a reinforced 1.2mm thickened carbon steel frame, this model ensures heavy-duty weight bearing and absolute safety for elderly and disabled individuals in both clinical and home care environments.

Featuring an integrated U-shaped commode seat and a 180-degree full reclining backrest, it serves as a multi-functional rehabilitation station that optimizes patient hygiene and prevents pressure sores.

Technical Specifications (Clinical Grade):

Feature                                    Detailed Specification

Model Number                        ZY-W02 (Mobility Series)

Frame Material                        1.2mm Thickened Carbon Steel (Powder Coated)

Seat Function                          Integrated U-Shaped Commode with Removable Bucket

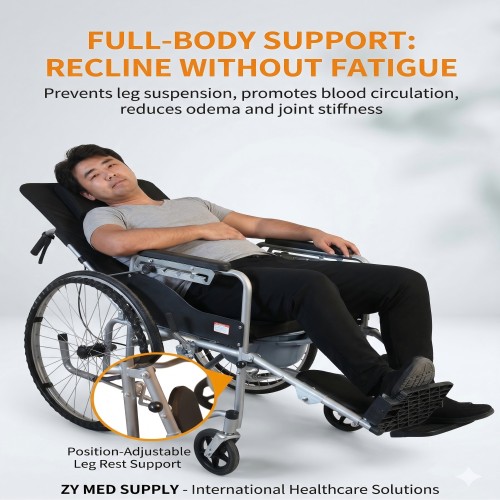

Backrest Type                         180° Full Reclining with Adjustable Pillow

Max Load Capacity                120kg - 150kg (Heavy-Duty Support)

Rear Wheels                            24-inch Solid Maintenance-Free Tires

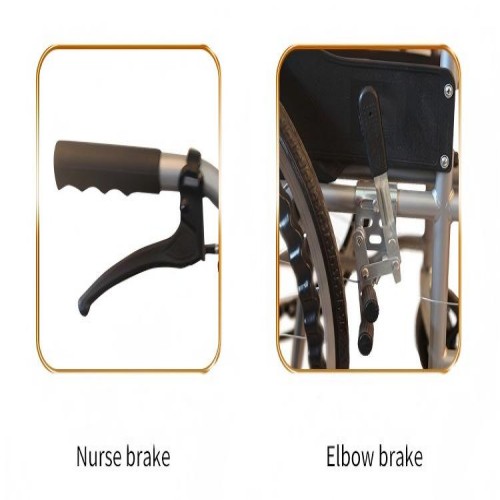

Braking System                       Dual Hand Brakes (Attendant & User Controlled)

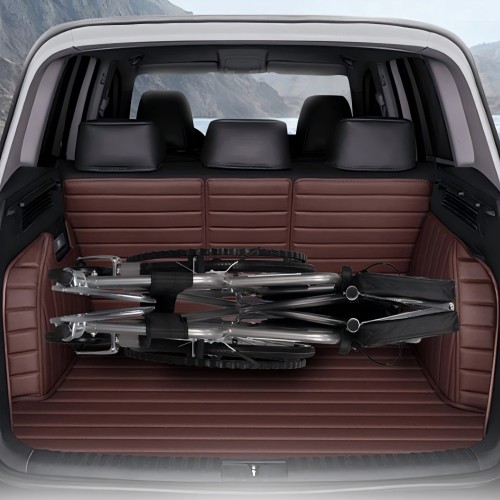

Folding Width                          Compact 28cm for Trunk Storage

Important Operational & Safety Guidelines:

Mandatory Supervision: First-time users must be accompanied by a caregiver. Always read the instruction manual thoroughly before operation.

Transfer Safety: Never stand on the footplates or apply heavy force to them when entering or leaving the wheelchair. Ensure both side brakes are fully locked during transfers.

Stable Posture: Maintain body balance against the backrest. Do not lean far outside the frame, especially on inclines, to prevent accidental tipping.

Slope Restrictions: Do not operate this manual wheelchair on slopes exceeding 8 degrees. Attendant brakes should not be used as the primary deceleration tool during downhill travel.

Maintenance & Hygiene: Regularly inspect all locking nuts (especially the rear axle). Clean with mild soap; avoid highly acidic or alkaline chemical disinfectants.

Why Source From ZY Med Supply for Bulk Sourcing?

We specialize in high-turnover medical mobility equipment designed for international distribution.

The ZY-W02 is flat-packable in high-density export cartons to maximize shipping efficiency and reduce your global logistics and landed costs.

We offer reliable OEM customization—including custom packing, color adjustments, and private branding—and provide complete technical documentation to support your regional registrations and clinical tenders.
